Experience the power of 802.11ax dual-band Wi-Fi for seamless, high-speed wireless connections.
Unlock faster data transmission with a 160MHz channel, optimizing your network for maximum efficiency.
Enjoy EasyMesh capability, allowing you to expand your Wi-Fi coverage effortlessly and create a unified network experience.
Integrate VoIP services for reliable and high-quality voice calls over the network.
Seamlessly distribute IPTV signals, delivering high-quality video and audio content to multiple devices for an immersive entertainment experience.

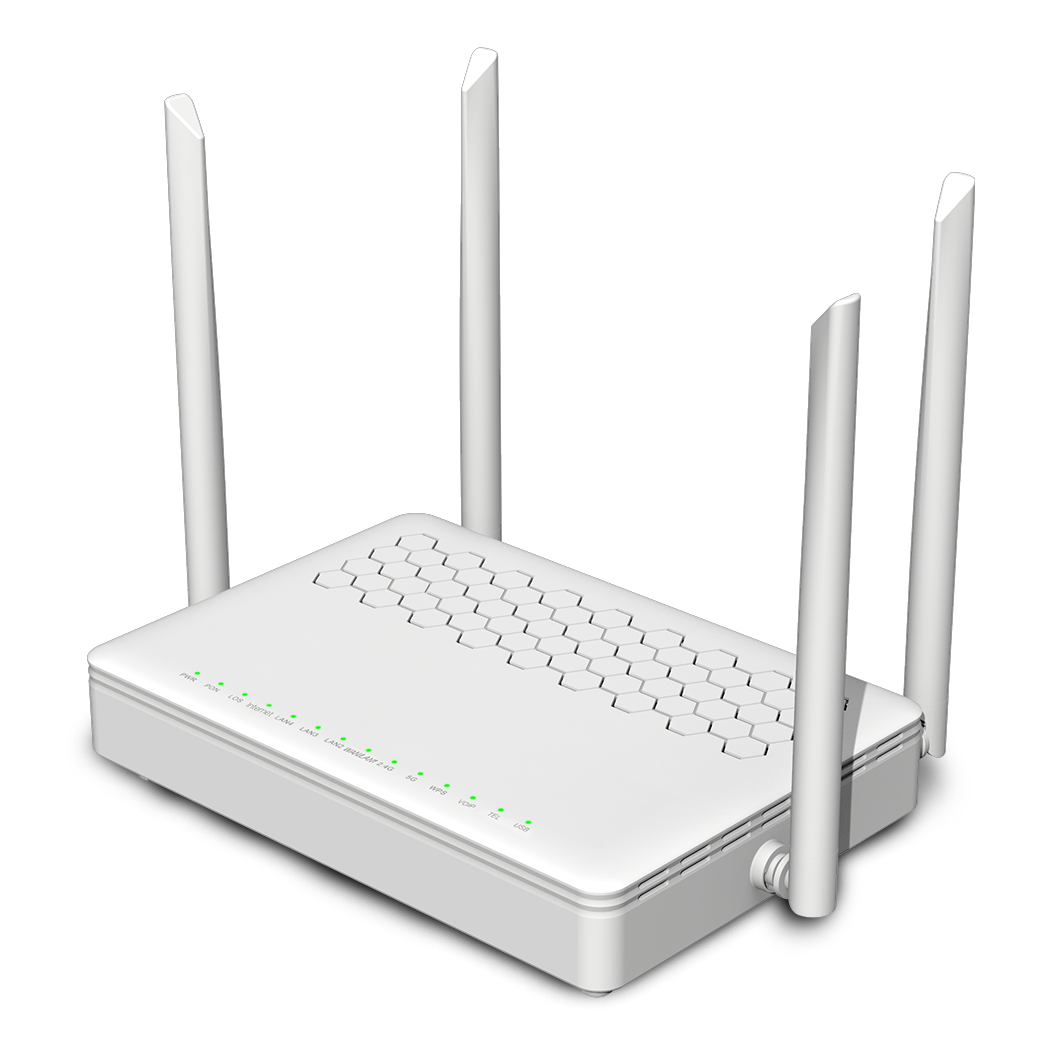

The Lyra GN630V is a powerful combo device that combines the functionality of an Optical Network Unit (ONU) and a Wi-Fi router. With 802.11ax dual-band technology, it delivers high-speed and seamless wireless connectivity. The 160MHz channel enhances data transmission for optimized performance. EasyMesh capability allows for effortless expansion of Wi-Fi coverage. It also supports VoIP for crystal clear voice communication and IPTV distribution for an immersive entertainment experience. Experience the convenience and performance of the Lyra GN630V Combo ONU for all your networking needs.
Dual Core CPU
512MB
256MB
Operating: 0 ~ 45°C
Storage: -20 ~ 70°C
Operating: 5% ~ 95% (non-condensing)
206x142x50mm (W*D*H)
400g (device only)
White
1*GPON port, SC/UPC
1*1GE WAN/LAN port
3*1GE LAN port
1*FXS RJ11 port
1*USB3.0, support 1.5A power output
12VDC/2A
Power On/Off, Reset, WPS
Power, PON, LOS, Internet, LAN4, LAN3, LAN2, WAN/LAN1, 2.4G, 5G, WPS, VOIP, TEL, USB
ITU.T G.984, G.988
Class B+, BOB, SC/UPC
2.488Gbps, Downstream
1.244Gbps, Upstream
1310nm, Transmit
1490nm, Receive
20KM
0.5 ~ 5 dBm
-8 ~ -28 dBm
SIP, H.248
VAD CNG, G.168 EC, RFC2833
G.722, G.711a/u, G.729
T.38, T.30/G.711
55Vrms, 5 REN
2.4GHz IEEE 802.11b/g/n/ax
5GHz: IEEE 802.11a/n/ac/ax
WFA EasyMesh v2.0
2.4GHz: 2x2 MIMO
5GHz: 2x2 MIMO
300Mbps(11n@40MHz) @ 2.4GHz
573.5Mbps(11ax@40MHz) @ 2.4GHz
2402Mbps(11ax@160MHz) @ 5GHz
WPA/WPA2-PSK, WPA3
Downlink & Uplink OFDMA
MU-MIMO
WMM, WPS 2.0
160MHz Channel Bandwidth
Multiple SSID (Guest SSID)
DFS Radar Detection
Band Steering
Wi-Fi Access Control
4*5dBi External Antennas
2 for 2.4GHz, 2 for 5GHz
TR-398 Wi-Fi Residential & SOHO Performance Testing Issue 2
